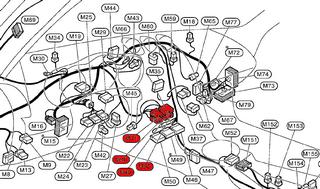

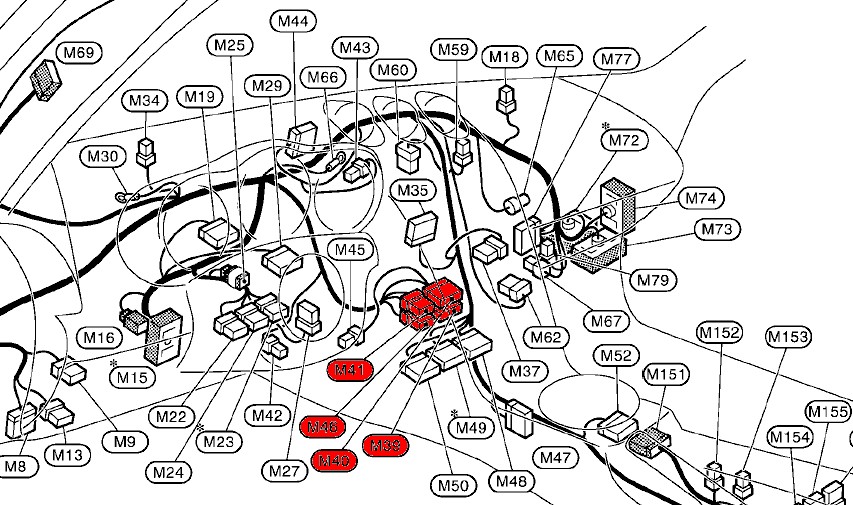

M46 |
| 43 |
41 |
40 |
39 |
38 |
37 |
35 |
33 |
| 44 |
42 |
|
36 |
34 |
|
|
|
M39 |
| 31 |
29 |
27 |
26 |
25 |
24 |
23 |
21 |
19 |
17 |
| 32 |
30 |
28 |
|
22 |
20 |
18 |
|
|
| (looking at the front of the
connector) |
| Pin |
Signal |
Pin |
Signal |
Pin |
Signal |
Pin |
Signal |
| 1 |
Front Left - |
12 |
Amp ON Signal |
23 |
REM-B |
34 |
CH-R02 |
| 2 |
Front Left + |
13 |
Rear Left - |
24 |
NAVI ON |
35 |
RXD |
| 3 |
Front Right - |
14 |
Rear Left + |
25 |
RE-GND |
36 |
TXD |
| 4 |
Front Right + |
15 |
Rear Right - |
26 |
TEL - |
37 |
SLA-REQ |
| 5 |
Antenna |
16 |
Rear Right + |
27 |
TEL + |
38 |
SO-CHG |
| 6 |
Battery |
17 |
? |
28 |
TEL ON |
39 |
SH-GND |
| 7 |
Illumination |
18 |
SP-S10 |
29 |
TEL Shield |
40 |
CD Shield |
| 8 |
Lighting |
19 |
? |
30 |
NAVI - |
41 |
CD-R + |
| 9 |
Shield |
20 |
1MB |
31 |
NAVI Shield |
42 |
CD-R - |
| 10 |
ACC |
21 |
? |
32 |
NAVI + |
43 |
CD-L - |
| 11 |
Shield |
22 |
REM-A |
33 |
ND-CONT |
44 |
CD-L + |
|
| |
= Not verified as working yet |
|
